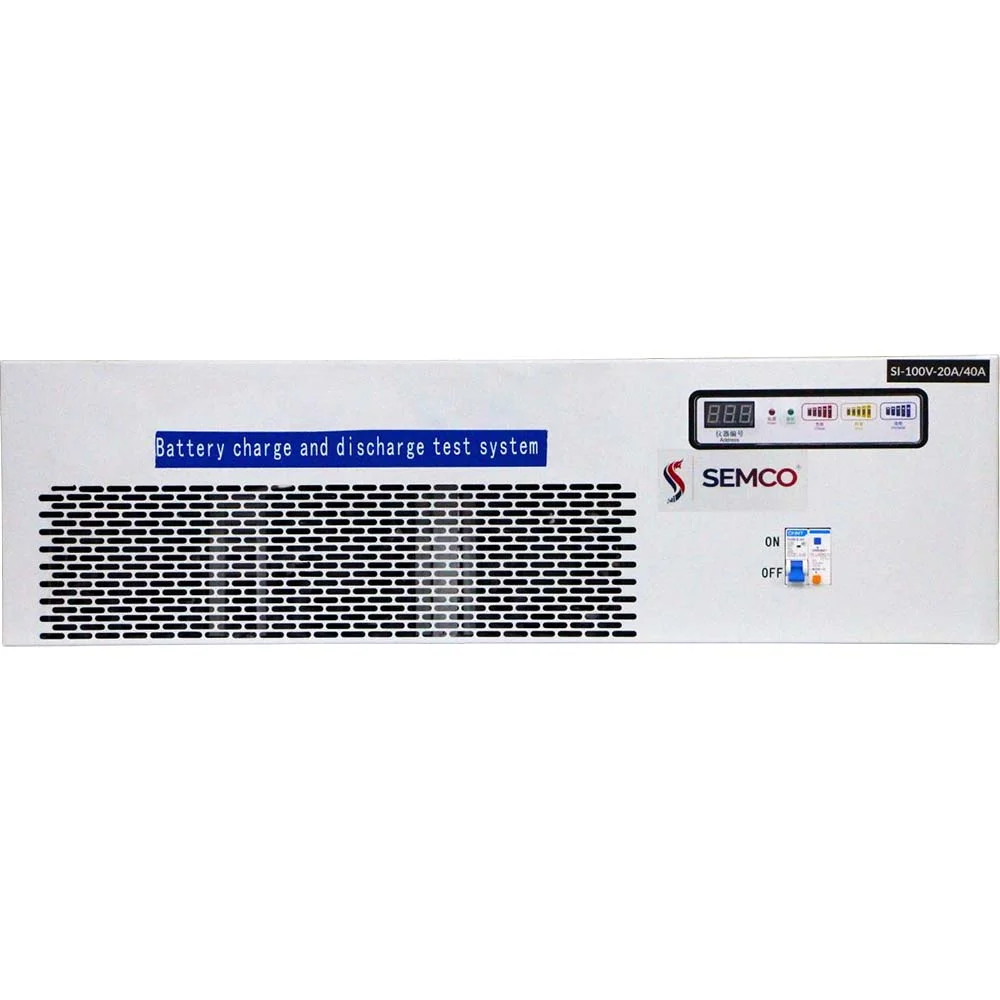

Semco SI BCDS 100V (20/40A) (4kW) 1CH – Standalone



Also Available in: Semco SI BCDS 100V (20/50A) (4kW) 1CH – Standalone

Input power AC 220V ±10% / 50Hz
Voltage Measuring range 10~100V
Precision ± (0.2% of reading + 0.2% of range)


Current

Charging range 200~20000mA
Charging accuracy ± (0.2% of reading + 0.2% of range)
Discharge range 200~40000mA
Precision ± (0.2% of reading + 0.2% of range)

Inquire Now
Please enable JavaScript in your browser to complete this form.
Name

Description

Recharge Constant voltage cut-off current Lowest 200mA m
Capacity Precision ±1‰
Power Discharge power ≦4000W
Time Inspection time Receive real time <2S
Timing range 0~999 hours/step
Data logging interval ≥5S
Mid-range version 1.1 series
Recharge Charging mode Constant current and constant voltage charging
Cut-off condition Voltage, current, relative time, overcharge protection
Discharge Discharge mode Constant current discharge
Cut-off condition Voltage, relative time, over-discharge protection


Loop

Cycle measurement range 1~999 times
Number of steps in a single cycle 100
Voltage and current detection sampling Four-wire sampling
Database Use SQL database to manage test data
Host computer communication method Based on TCP/IP protocol, serial port
Data output method EXCEL, TXT, chart
Communication interface Network port
Number of channels per cabinet Single channel
